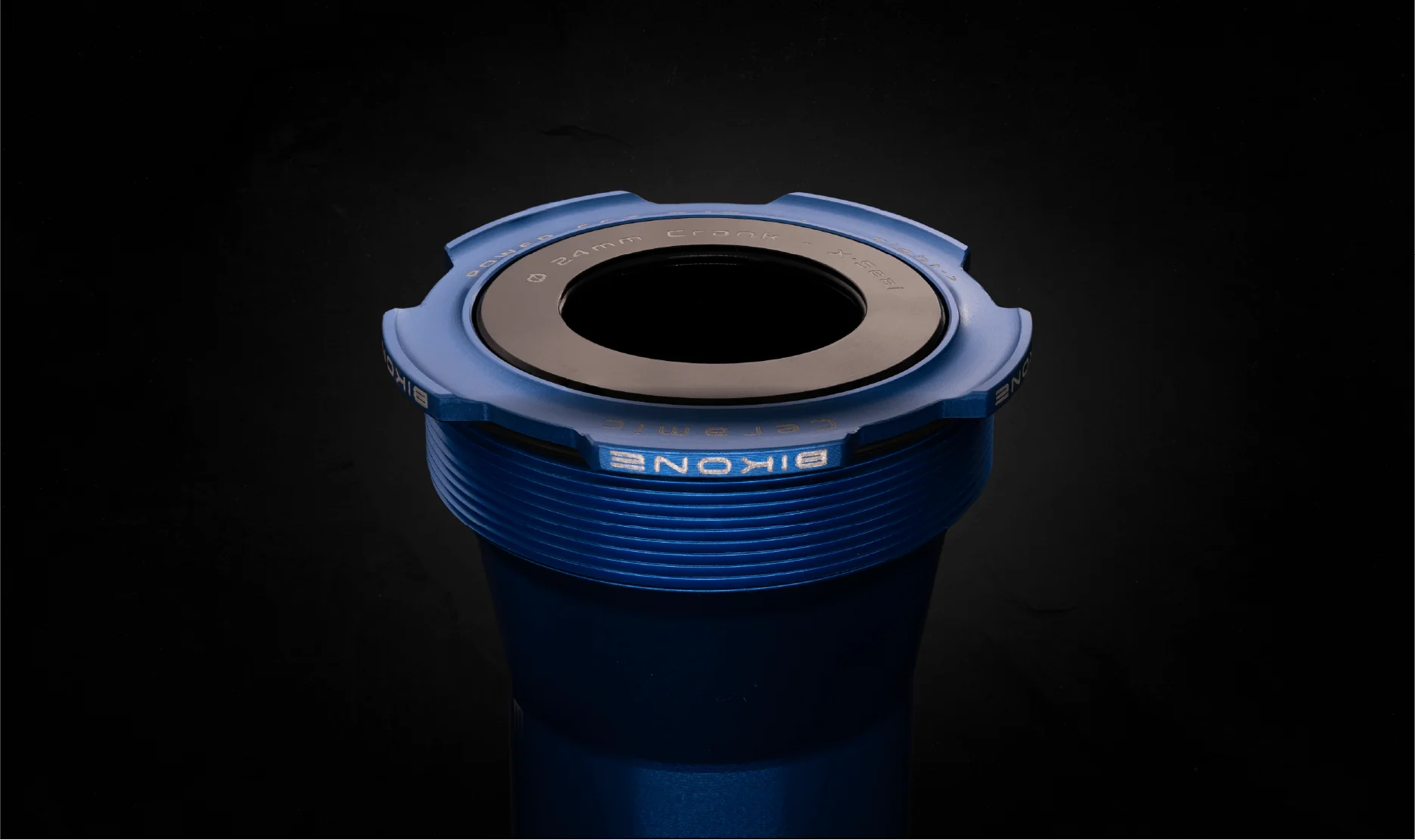

T47/T47a Ceramic PowerSet Bottom Bracket for Shimano is the ultimate high-performance bottom bracket, developed in collaboration with UAE Team Emirates. Used by the world’s top cyclists in the 2024 season, this model reduces power loss by up to 20%, enhancing efficiency and speed.

With ceramic bearings for smooth performance and durability, it’s designed for competitive cyclists who demand the best. Compatible with Shimano systems, this bottom bracket ensures optimal power transfer even in the most demanding conditions.

Included in the box:

• · T47/T47a Ceramic PowerSet Bottom Bracket for Shimano cranks
• · Seals for wet conditions.
• · Special assembly tool.
• Assembly specs
• Crankset diameter: Shimano (24 mm)
• Frame width: T47 & T47a (77 mm / 85.5mm / 86.5 mm)
• For Threaded frames
• Compatible with both T47 Internal and T47a
• This bottom bracket uses an special tool for its assembly that will be included in the package. We strongly recommend to consult the installation instructions before installation
• which you can find here.
• Weight
• 120 grams
• Characteristics
• PowerSet Technology. By taking into consideration the behaviour of a bearing when it is under load we have designed a bottom bracket that reduces power loss by up to 20%.
• Preloaded System. All the balls come into contact with the bearing
• distributing the force over a larger surface area. By doing this
• we reduce friction and minimise wear.
• Angular Ball Contact Bearings. They support both axial and radial loads.
• Unibody design. Ensures the parallelism and concentricity of the bottom bracket.
• Fully sealed. Axial seals on bearings and fully sealed on all surfaces
• to avoid water or dust.
• All this technology combined allow to get the most out of the rider's power on each pedal stroke
• optimising your performance and making you go faster.
