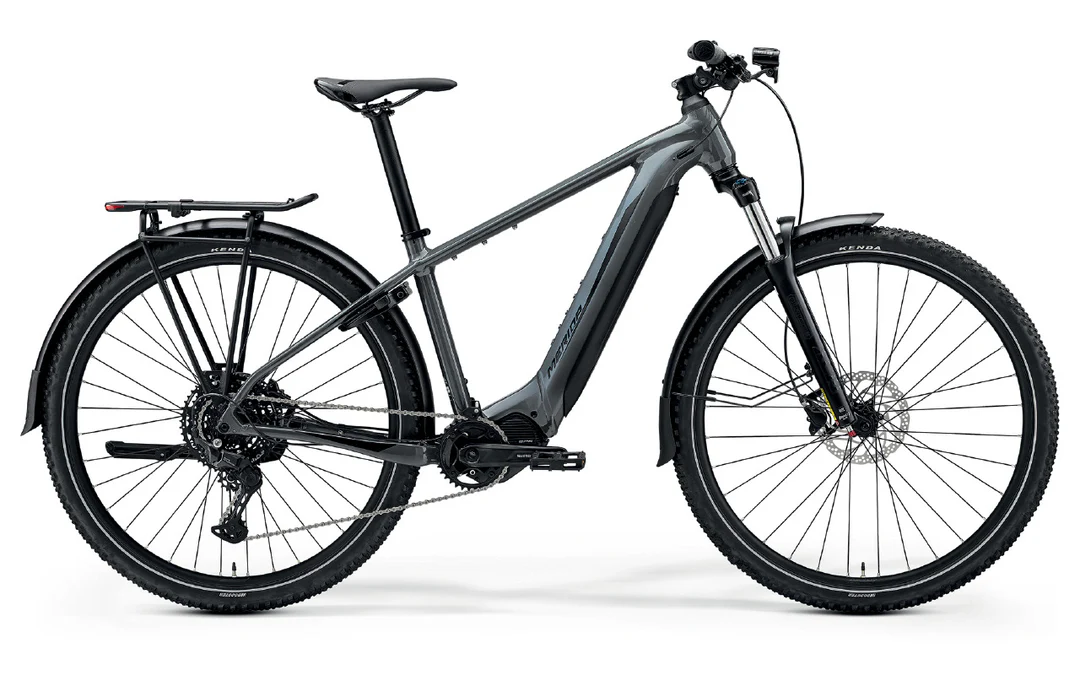

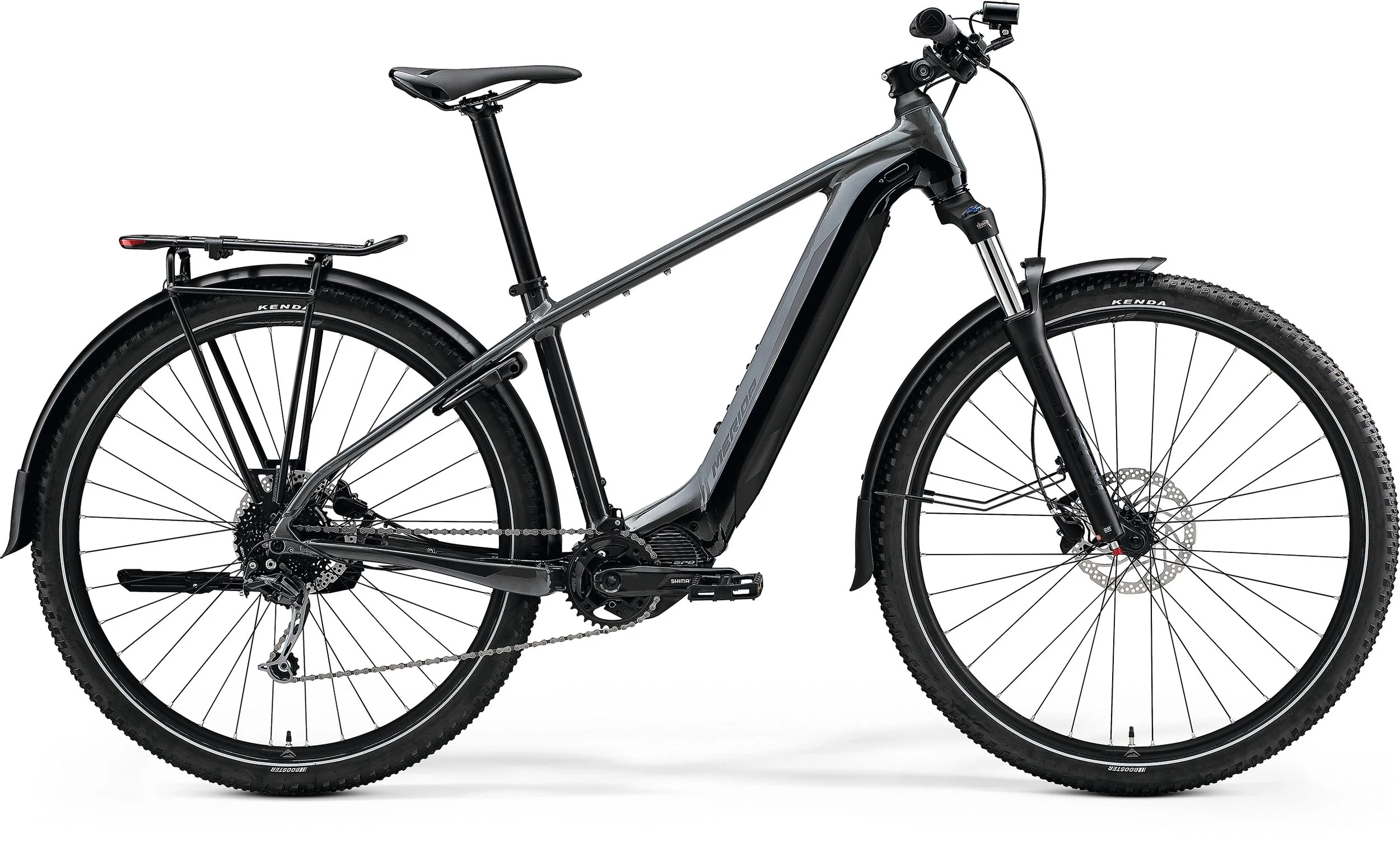

The power to do more of what matters. That’s what the eBIG.NINE 400 EQ offers. More fun when you’re riding off-road, with a powerful Shimano EP8 drive unit to help you up the hills. More time on the bike, with a 630 Wh battery that’ll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More comfort on the commute, thanks to standard fit mudguards, lights, rack and kickstand. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that’s also got a lifetime warranty.

Arguably the most versatile e-bike in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure activity. It’s a bike that can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way. The high-quality aluminium frame integrates a choice of 630 or 750 Wh battery sleekly into the downtube, with a more economical frame featuring semi-integrated 504 Wh battery on some models. All feature powerful and smooth Shimano drive units that will power you up any hill. Ready to be equipped with mudguards and even a side stand (or available as the EQ fully equipped version), the eBIG.NINE will help you make the most of any situation.

Lightweight aluminium frame with 29er wheels
Powerful and refined Shimano EP8 assistance
Integrated 630 Wh battery
Confidence inspiring mountain bike handling
Comfort and control enhancing suspension fork
Comes fully equipped with lights, kickstand, rack and mudguards

FRAME eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube
SHOCK
FORK Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS
BRAKE - FRONT Shimano MT-200; 2 piston
BRAKE - REAR Shimano MT-200; 2 piston
ROTOR - FRONT Shimano RT30; 180 mm
ROTOR - REAR Shimano RTEM300; 180 mm
CHAIN Shimano LG500
CHAINWHEEL Shimano CRE70-B; 34 ATC
CRANK/SIZE Shimano FC-EM600; 165 mm for all sizes
BB SET included
DERA - FRONT
DERA - REAR Shimano CUES U6000; GS
FREEWHEEL Shimano LG300; 11-48 ATC; 10 GER
PEDAL VP VPE-537
GRIP MERIDA EXPERT TK
H-BAR MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB
H-B STEM MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
STEM/SIZE 90 mm all sizes
HEAD SET MERIDA-8155 (for the steerer 1-1/8"~1.5")
HUB - FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB - REAR Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock
AXLE - FRONT
AXLE - REAR MERIDA COMP TR; including removeable lever, 6/4mm allen key
RIM MERIDA COMP CC II; 25 IWR; MAT aluminium
RIM TAPE
SADDLE MERIDA EXPERT TK; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
SHIFTER - FRONT
SHIFTER - REAR Shimano CUES U6000-11
INNER TUBE Ultralite-29er
TYRE - FRONT KENDA Booster; 29x2.2"; wire
TYRE - REAR KENDA Booster; 29x2.2"; wire
BOTTLE CAGE BOTTLE CAGE ADAPTER, BK-003
CARRIER MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE
FENDER Sunnywheel SW-FA311-65A/ SW-FA311-65E1
KICKSTAND CL-KA98, 29"
LIGHT - FRONT LEZYNE E-BIKE HECTO STVZO E65
LIGHT - REAR Spanninga Commuter GLOW XE
FRAME LOCK Abus 4650 L
DRIVE UNIT Shimano EP6; 85Nm
DRIVE COVER SM-DC-EP801
BATTERY Shimano EN806; 630Wh
BATTERY CHARGER Shimano EC-E6002; 2A charging current
BATTERY LOCK Abus key
DISPLAY Shimano SC-EN500A

Geometries

Frame Size	S	M	L	XL
Tyre Sizes	29"	29"	29"	29"
ST seat tube [mm]	380	430	480	530
TT top tube [mm]	588	605	625	645
CS chain stay length [mm]	465	465	465	465
HTA head tube angle [°]	67.5	67.5	67.5	67.5
STA seat tube angle [°]	74.5	74.5	74.5	74.5
BD bottom bracket drop [mm]	62.5	62.5	62.5	62.5
HT head tube [mm]	115	120	130	140
FL fork length [mm]	527	527	527	527
R reach [mm]	411	427	445	462
S stack [mm]	636	640	650	659
WB wheel base [mm]	1165	1183	1204	1225
SH stand over height [mm]	719	750	794	835
