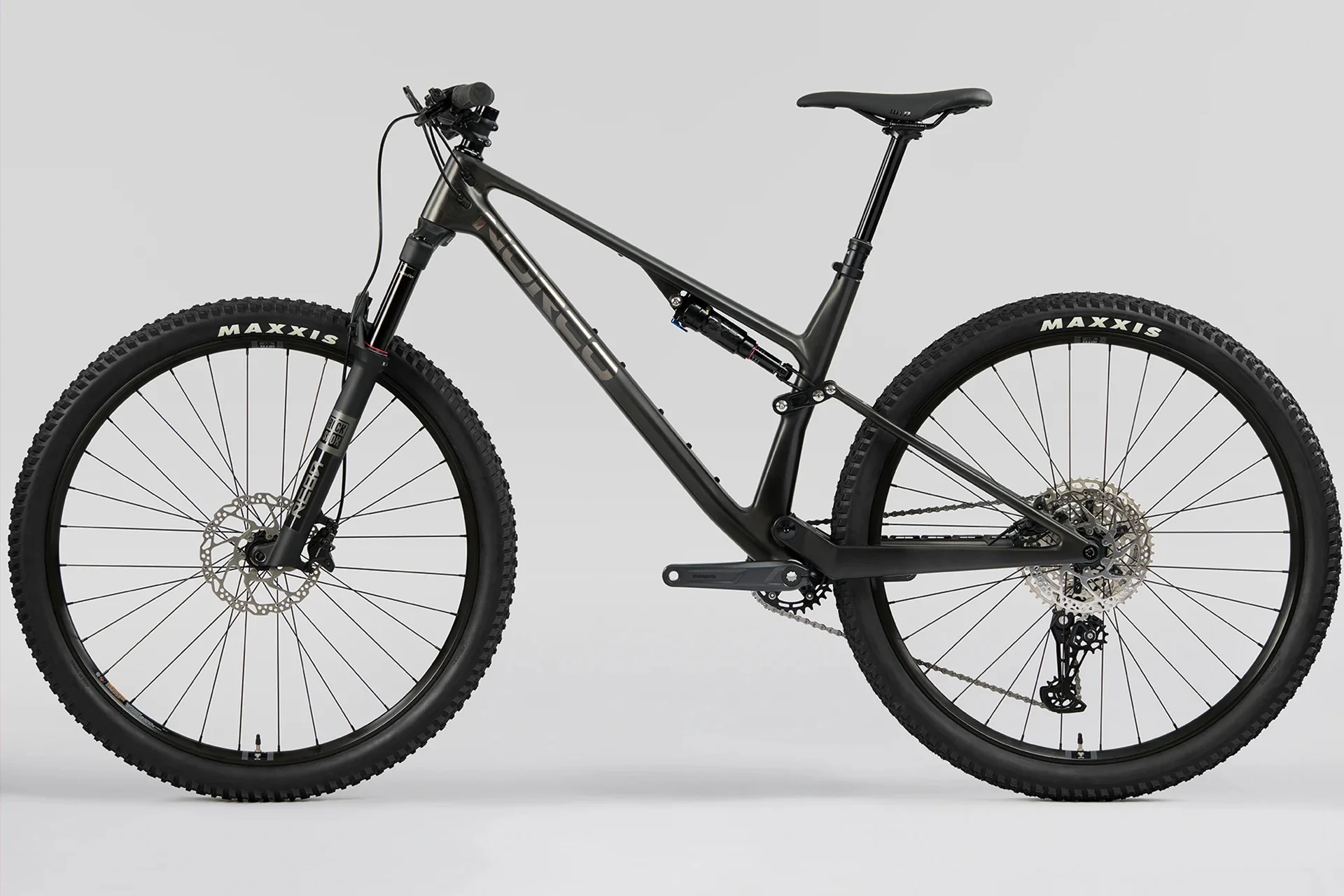

The Revolver C3 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.

Spec

Frame
• Carbon Frame
• 120mm Travel
• UDH Compatible
• Eagle Transmission Compatible
• Ride Aligned™ Design

Suspension

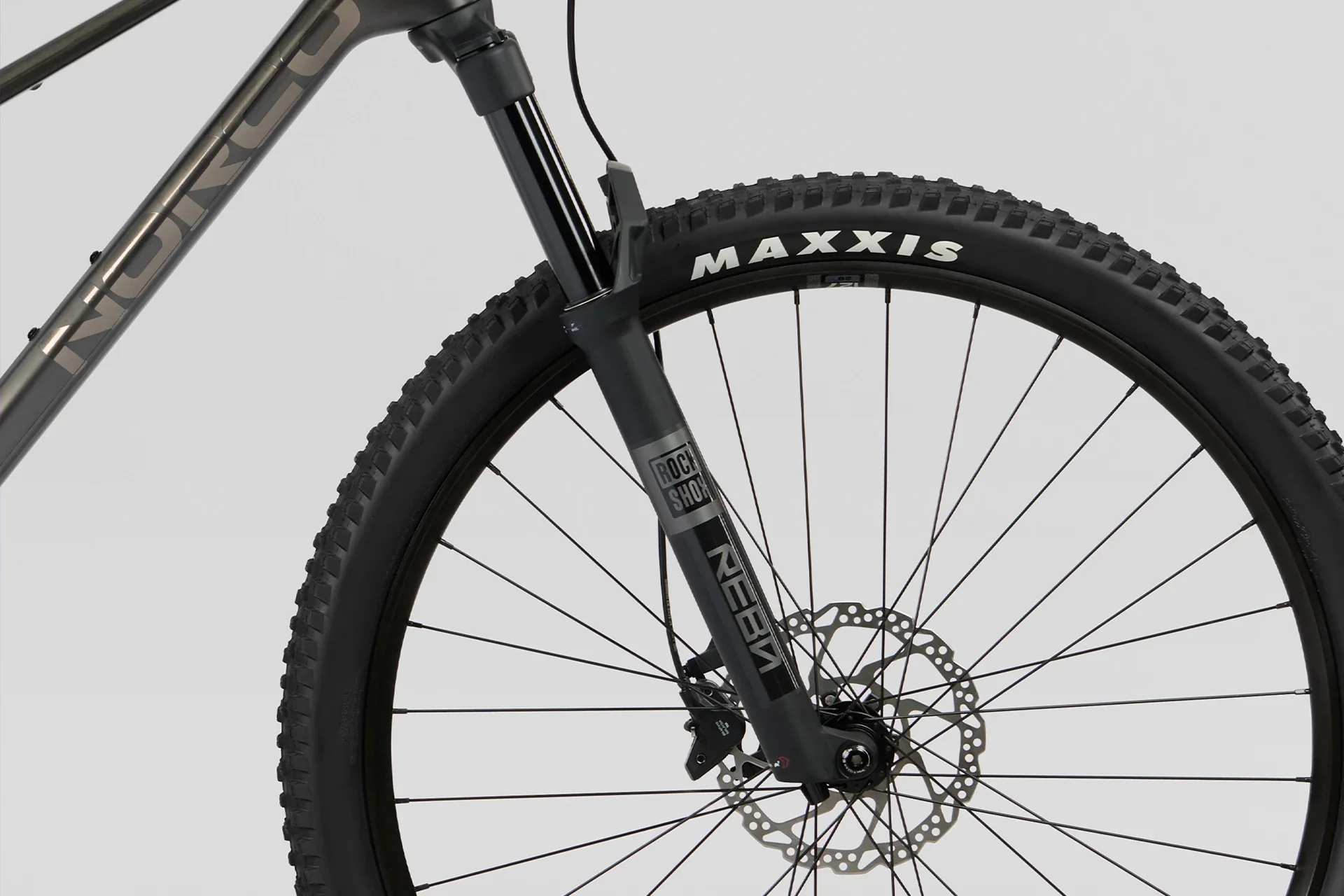

• Fork: RockShox Reba RL
• Motion Control Damper
• 130mm Travel
• 44mm Offset

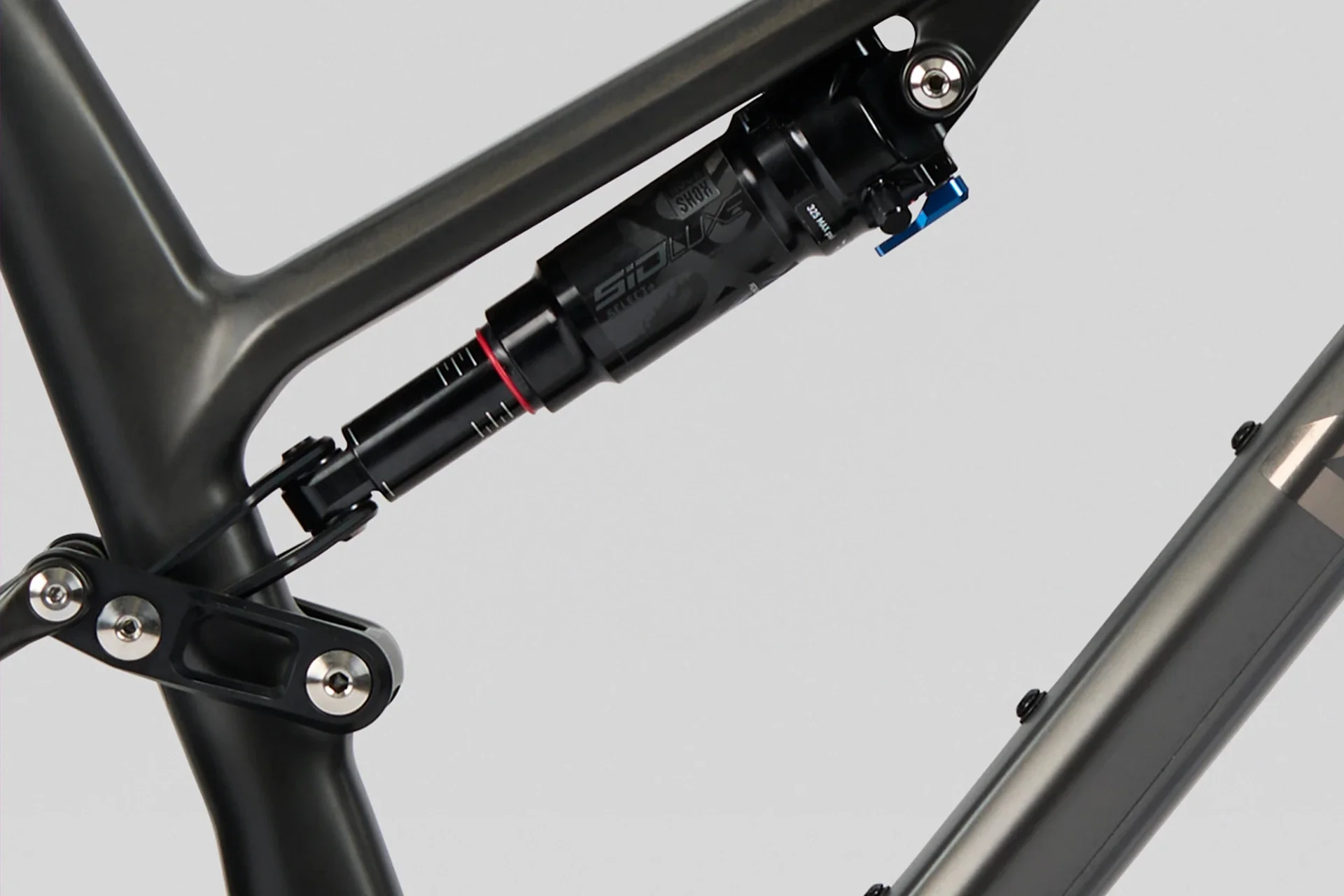

• Rear Shock: RockShox SID Luxe Select+, 190x45

Drivetrain
• Shifter: Shimano Deore SL-M6100, 12spd
• Rear Derailleur: Shimano Deore RD-M6100 SGS, 12spd
• Cassette: Shimano Deore CS-M6100-12, 10–51t
• Chain: Shimano Deore CN-M6100-12, 12spd
• Crankset: Shimano Deore FC-MT512, 32T, CL55
• Crank Lengths:
• S1: 165mm
• S2–S3: 170mm
• S4–S5: 175mm
• Bottom Bracket: Shimano BB-MT501, BSA 73mm

Brakes
• Brakes: Shimano Deore BR-MT410, 2-Piston, Resin Pads
• Brake Levers: Shimano Deore M4100
• Front Rotor: Shimano SM-RT64, 180mm, Center Lock
• Rear Rotor: Shimano SM-RT64, 180mm, Center Lock

Cockpit
• Handlebar: Norco 6061 Alloy
• Widths:
• S1–S3: 760mm
• S4–S5: 780mm
• Rise: 20mm
• Stem: Norco 6061, 50mm, 35mm Clamp
• Grips: WTB Wavelength
• Headset: FSA No.42/48ACB Integrated Headset
• Tapered 1-1/8"–1.5"

Seating
• Saddle: WTB Silverado Medium
• Seatpost: TranzX YSI36, 31.6
• Dropper Travel:
• S1–S2: 120mm
• S3: 150mm
• S4: 170mm
• S5: 200mm
• Seat Clamp: Norco Bolted Clamp, 34.9mm ID

Wheels
• Rims: WTB ST i27 TCS, 27mm ID, 32h, 29"
• Front Hub: Shimano Deore HB-MT410, 15x110 Boost, Center Lock, 32h
• Rear Hub: Shimano Deore FH-MT510, 12x148 Boost, MicroSpline, Center Lock, 32h
• Rear Axle: 148x12 TA, L174, TL13, M12x1.6
• Spokes: Stainless Steel
• Tubeless Valves: WTB Tubeless Valves
• Sealant: Stan’s 250ml
• Front Tire: Maxxis Forekaster 29x2.4 EXO TR
• Rear Tire: Maxxis Rekon 29x2.4 EXO TR
