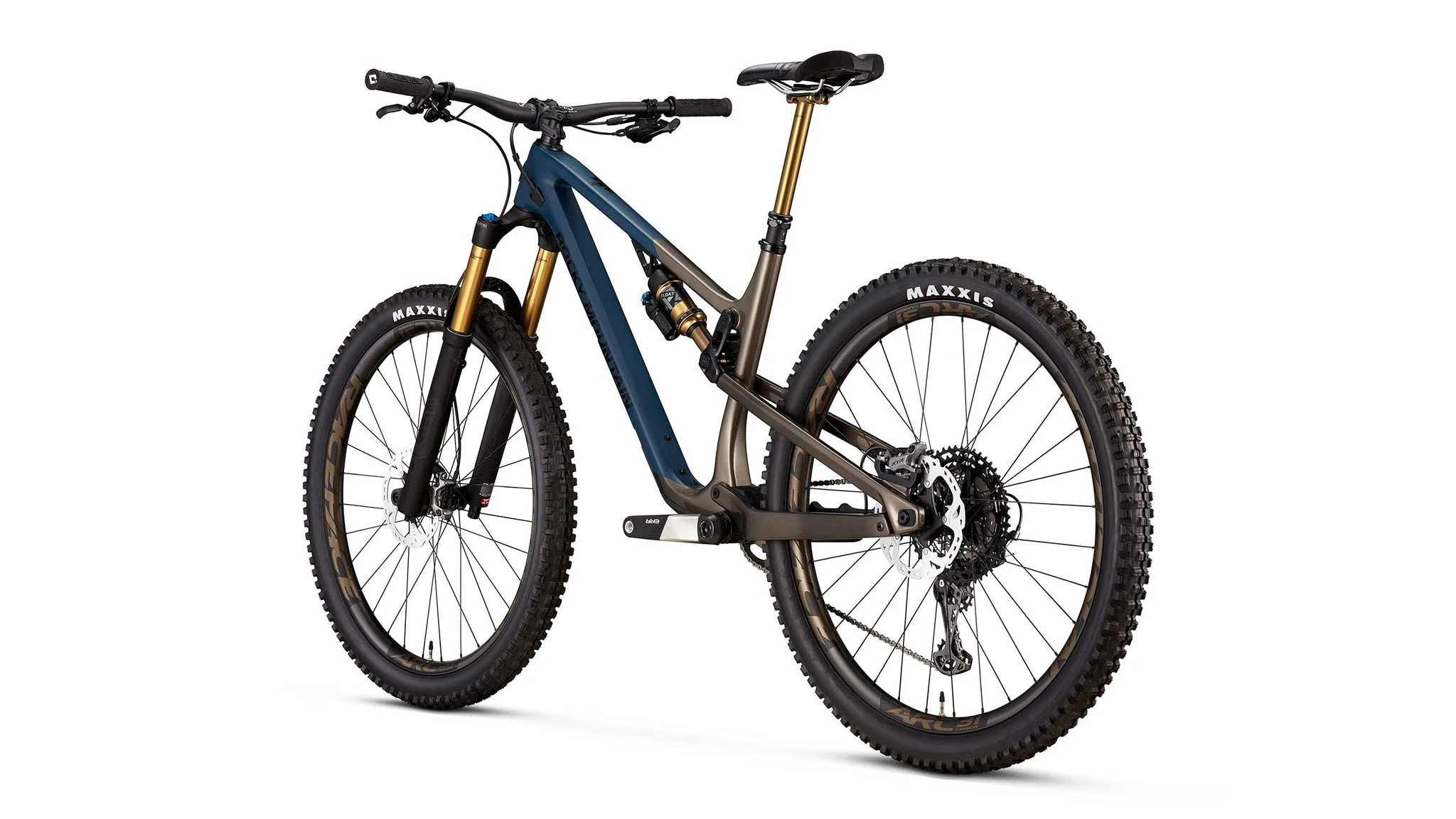

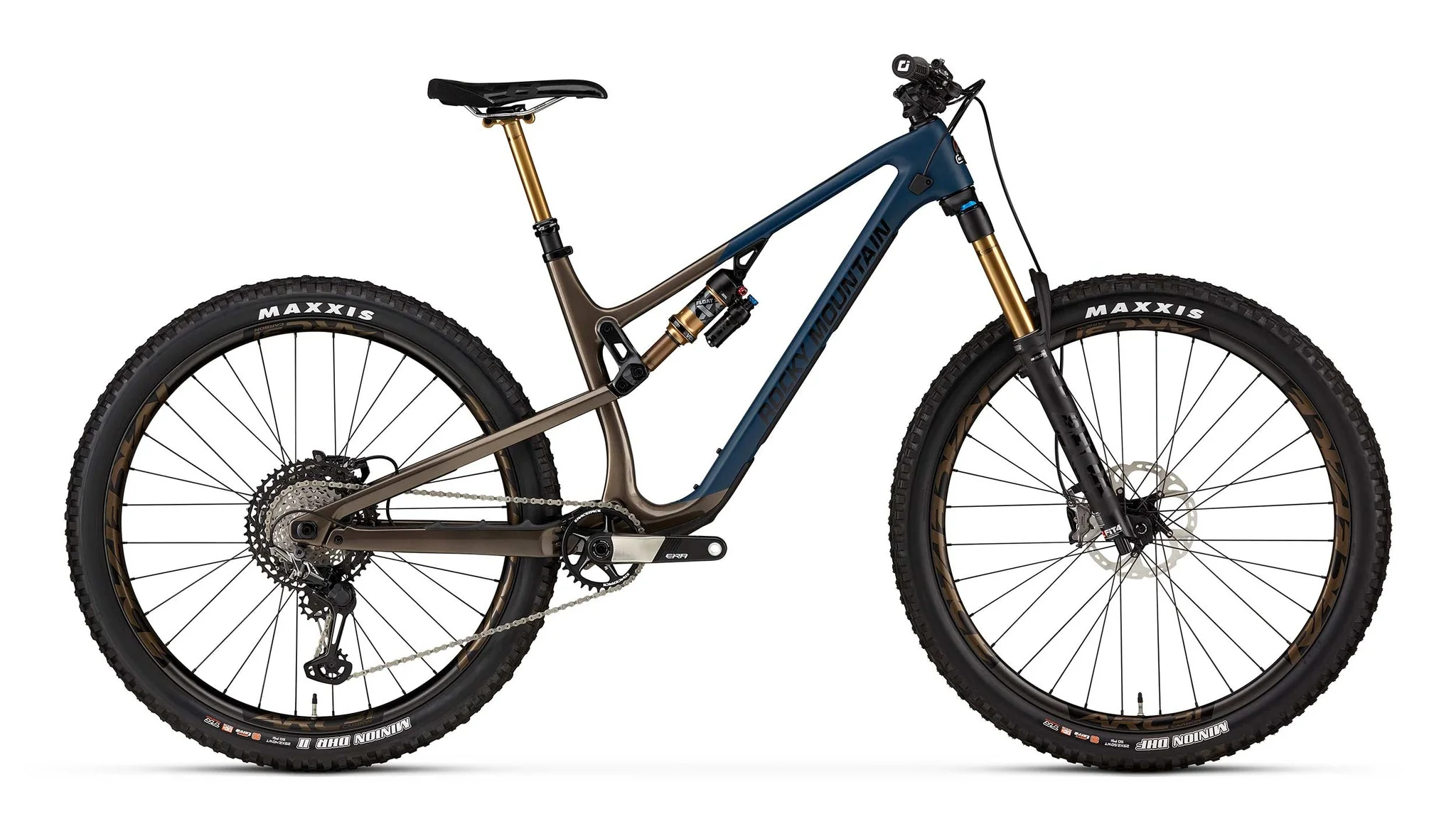

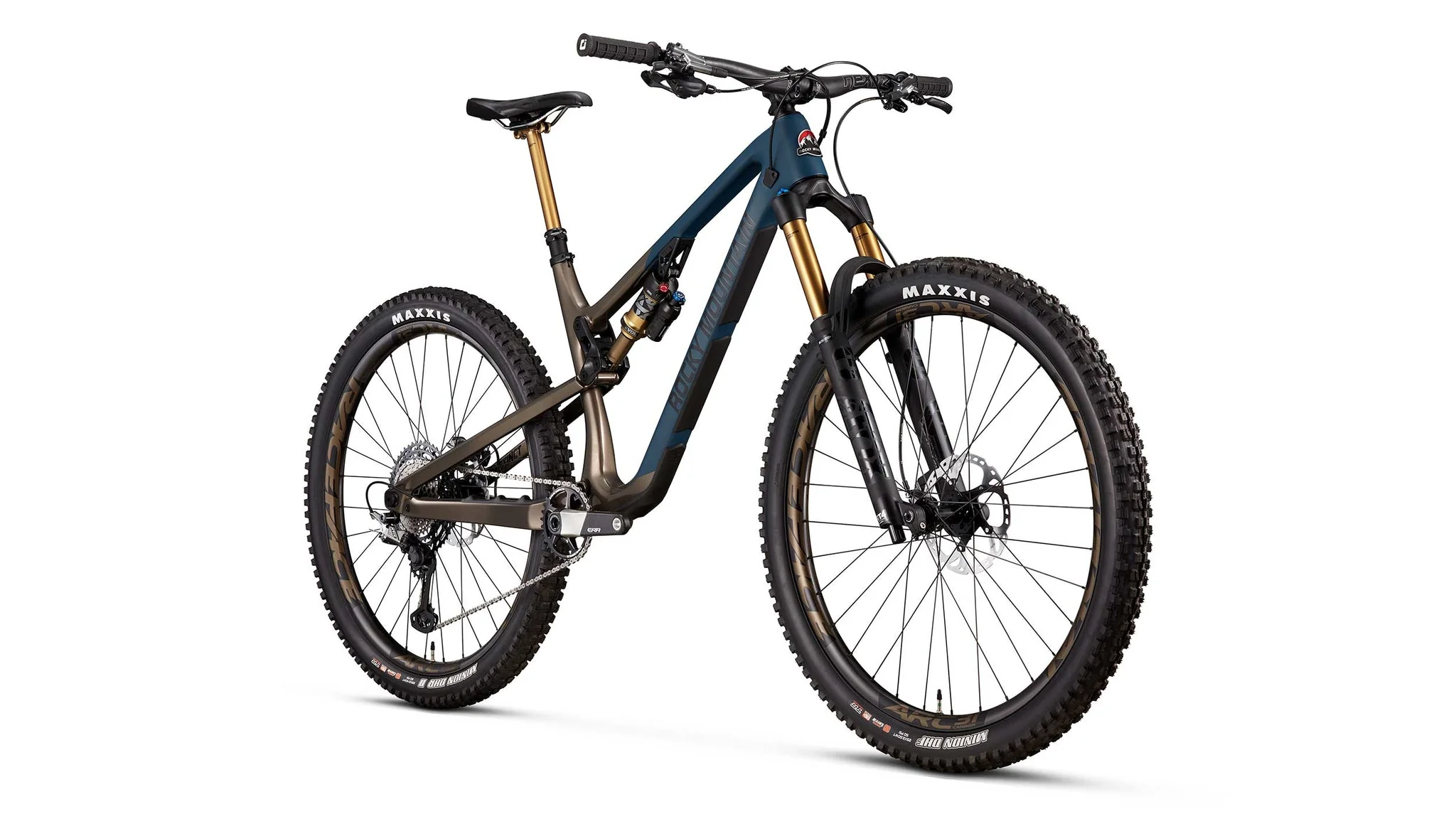

Rocky Mountain designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. Rocky Mountain updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between.

Frame     SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork     Fox 36 Float EVOL FIT4 Factory Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Rear Shock     Fox Float X Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Handlebars     Race Face Next R | 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
Grips     ODI Elite Pro Lock On
Stem     Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m
Seatpost     Fox Transfer Factory Series 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Saddle     WTB Volt Race 142
Shifters     Shimano XTR
Rear Derailleur     Shimano XTR
Brakes     Shimano XTR Trail 4 Piston | IceTec Metal Pads | F:Shimano RT86 180mm | R:Shimano RT86 180mm
Cassette     Shimano XTR 12s 10-51T
Cranks & Chainring     Race Face Era Cinch | 32T | 30mm Spindle | Crank Length = 170mm
Chain     Shimano XTR 12s
Bottom Bracket     Race Face BB92 30mm
Headset     FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5"" Crown Race
Front Hub     Rocky Mountain Sealed Boost 15mm
Rear Hub     DT Swiss 350 Boost 148mm | 36T Star-Ratchet
Spokes     DT Swiss Competition 2.0/1.8/2.0
Tires     F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Rims     Race Face ARC Carbon 31 | 32H | Tubeless Ready - Tape / Valves Incl
Weight NW     This information isn't available yet. We will update the weight of this model as soon as possible.
