Introducing the all-new Search Alloy: Redesigned from the ground up to be lighter than ever, with optimized sizing and geometry. This versatile bike features all the mounts and clearance you need for your next adventure. Whether you're tackling smooth roads or rough trails, the Search Alloy is built to handle it all with ease

Frame
• Search XR Butted Aluminum Frame
• Smooth Welded Construction

Fork
• Search XR Carbon Fork
• 51mm Offset
• 12x100 Thru Axle
• Flat Mount

Drivetrain
• Shifters: Shimano GRX ST-RX610
• Front Derailleur: Shimano GRX FD-RX820
• Braze-On
• Down Swing
• 2x Setup
• Rear Derailleur: Shimano GRX RD-RX822, 12spd
• Cassette: Shimano CS-HG710, 11–36t, 12spd
• Chain: KMC X12, 12spd
• Crankset: Shimano GRX FC-RX610, 46/30T, 2x12spd
• Crank Lengths:
• S1–S4: 170mm
• S5: 172.5mm
• Bottom Bracket: Shimano SM-BBR60, Threaded Hollowtech II, 68/70mm

Brakes
• Brakes: Shimano BR-RX400, Resin Pads
• Brake Levers: Shimano GRX ST-RX610
• Front Rotor: Shimano SM-RT54, 160mm, Center Lock
• Rear Rotor: Shimano SM-RT54, 160mm, Center Lock

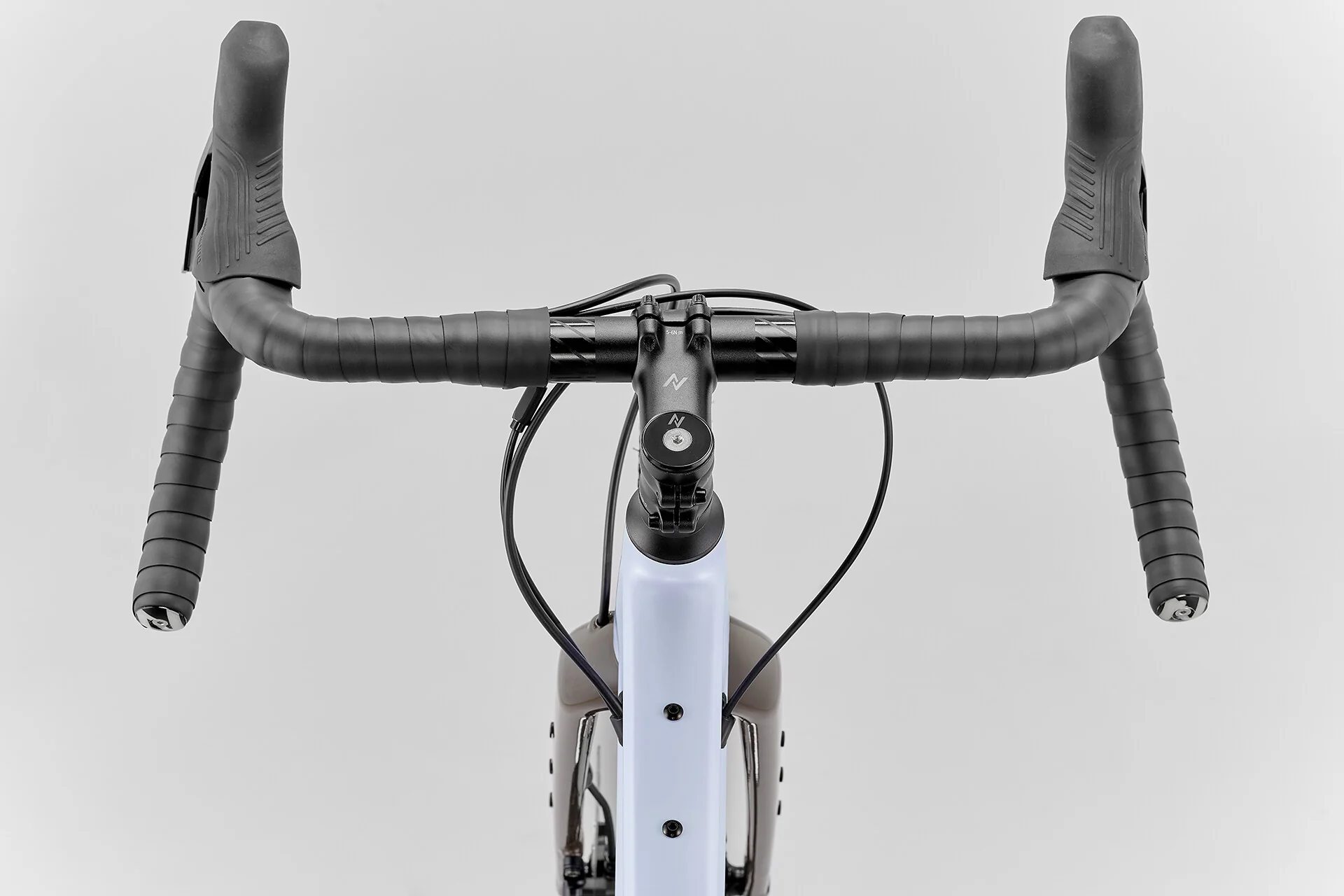

Cockpit
• Handlebar: Norco Super Flare Aluminum
• 16° Flare
• Widths:
• S1–S2: 40cm
• S3: 42cm
• S4: 44cm
• S5: 46cm
• Stem: Norco SL Aluminum, 70mm, 31.8 Clamp
• Bar Tape: Griptacular Shockproof Tape, 3mm
• Headset: Integrated Angular Sealed Cartridge Bearings
• Tapered 1-1/8"–1.5" (IS42/28.6 | IS52/40)
• Headset Spacers: 2x10mm, 1x5mm, 1x2mm

Seating
• Saddle: Selle Royale SRX Gravel, 148mm Width
• Seatpost: Norco Aluminum, 12mm Offset, 27.2 x 350mm
• Seat Clamp: Norco Aluminum, 31.8mm

Wheels
• Rims: Alloy Tubeless Pinned, 23mm ID, 28h
• Front Hub: Shimano HB-TC500, 12x100, Sealed Bearing, Center Lock, 28h
• Front Axle: Tooled SL, 12x100 Thru Axle
• Rear Hub: Shimano FH-TC500, 12x142, Sealed Bearing, MicroSpline, Center Lock, 28h
• Rear Axle: Tooled, 12x142, L167mm, TL18mm, M12x1.75
• Spokes: Sapim Leader 2.0mm w/ Brass Nipples
